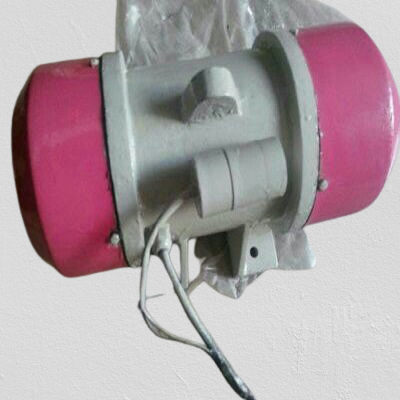

VIBRATOR MOTOR
Housing (Stator Frame) Cast Iron body with cooling ribs Core of Insulated lamination with a high pressure die-cast Aluminum cage. The whole rotor assembly is dynamically balanced to ensure quiet and vibration free operation. Surface of rotor is protected by anti- corrosion coating.
Range:
0.25 HP to 5.0 HP Three phase supply
0.10 HP to 2 HP Single Phase supply
| FRAME SIZE | HP | A+ | B+ | C+ | D+ | E+ | F+ | G+ | GA+ | H+ | K | L+ | AB+ | BB+ | AC | AA | HA | DH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 0.5 | 140 | 70 | 55 | 19 | 40 | 5 | 16.5 | 21.5 | 80 | 12 | 295 | 165 | 125 | 158 | 25 | 12 | 199 |
| 80 | 1 | 140 | 115 | 55 | 19 | 40 | 5 | 16.5 | 21.5 | 80 | 12 | 335 | 165 | 160 | 158 | 25 | 12 | 199 |
| 112 | 0.5 | 190 | 70 | 92 | 22 | 50 | 6 | 19 | 25 | 112 | 12 | 323 | 230 | 100 | 180 | 40 | 12 | 243 |
| 112 | 1 | 190 | 115 | 73 | 22 | 50 | 6 | 19 | 25 | 112 | 12 | 353 | 230 | 130 | 180 | 40 | 12 | 243 |
| 112 | 2 | 190 | 150 | 100 | 22 | 50 | 6 | 19 | 25 | 112 | 12 | 410 | 230 | 190 | 180 | 40 | 12 | 243 |
| 112 | 3/5 | 190 | 178 | 135 | 22 | 50 | 6 | 24 | 32 | 112 | 12 | 187 | 230 | 260 | 180 | 40 | 12 | 292 |
| FRAME SIZE | HP | A+ | B+ | C+ | D+ | E+ | F+ | G+ | H+ | I | L+ | AA | AB+ | AC | AD | BB+ | CA | HA | HD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPDP | Up to 5 | 216 | 170 | 124 | 28 | 60 | 8 | 24 | 132 | 12 | 445 | 45 | 256 | 240 | 160 | 195 | 143 | 12 | 31 |
Related products
Include products updated are similar or are same of quality
Armature laminations are of high quality electrical grade steel. Commutator: Made from silver-copper-alloy. Electrolytic copper segments insulated from one another with mica. Riser connections are the TIG welded. Armature windings are impregnated with synthetic resin and properly baked at designed temp. to give complete protection against damage from moisture, acids and alkalies.
Range:
0.25 HP to 20.0 HP Three phase supply and
0.10 HP to 1 HP Single Phase supply
Technical Specification: Range : 0.25 to 30 HP, Frame size : 71 mm – 225 mm, Voltage : 12V,24V,110V,220V,440V , Ambient Temp. : 40°C, RPM: 200 to 5000 Standards: Conformance : IS 4722.
Armature laminations are of high quality electrical grade steel. Commutator: Made from silver-copper-alloy. Electrolytic copper segments insulated from one another with mica. Riser connections are the TIG welded. Armature windings are impregnated with synthetic resin and properly baked at designed temp. to give complete protection against damage from moisture, acids and alkalies.
Range: 0.25 HP to 20.0 HP Three phase supply and 0.10 HP to 1 HP Single Phase supply
Shaft: Made from high carbon steel (ie. EN-8) Terminal Box: Located at right hand side of the drive end side, sealed against ingress of moisture. Also provided with conduit entry. Earthing terminal is fitted at the box-side. High air flow external Bi-directional polypropylene fans assure low temperature rise to give an extended life of motor. Fan cowls are suitable gauge pressed steel construction, securely bolted to end shield of motor-body.
